Screw type fuse base D1/25
● According to DIN VDE 0636,IEC 269
● Rated voltage:E16/DII AC 500V DIII AC 660/DC 660V
● 1 and 3 pole models for snap-on and screw fixing
● Device mounting depth approx 85mm
| size/in A | For thread | Order NO. | Fig. | Weight (g) |
| Rated current 25A | ||||

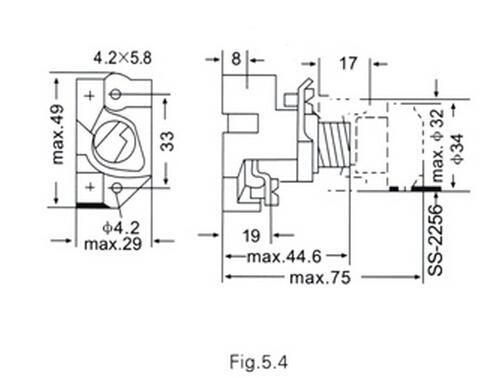

| D1/25 | E16 | FBE16 | Fig.5.4 | 145 |
