D0-Fuse links Screw Type Fuse
● According to DIN VDE 0636,IEC 269
● Rated voltage AC 400V, DC 250V
● Operating class gL/gG
● For cable and line protection
● Finely graded selectivity
● High rated short-circuit breaking capacity
| size | In | Colour mark | Order NO. | Fig. | Weight |
| A | RAL 840 HR | (g) | |||
| D01 | 2 4 6 10 16 |
Rosy Bronzy Green Red Gray |
02GD01 04GD01 06GD01 10GD01 16GD01 |

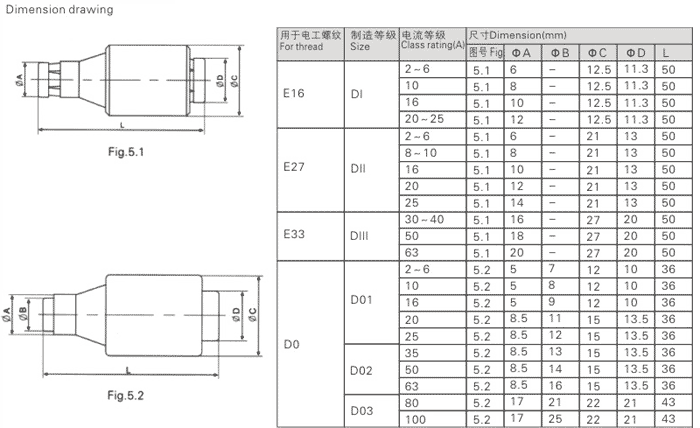

Fig.5.2 | 6 7 |
| D02 | 20 | Blue | 20GD02 | Fig.5.2 | 12 |
| 25 | Yellow | 25GD02 | 13 | ||
| 35 | Black | 35GD02 | 14 | ||
| 50 | White | 80GD02 | 15 | ||
| 63 | Coppery | 63GD02 | 16 | ||
| D03 | 80 | Silver | 080GD03 | Fig.5.2 | 40 |
| 100 | Red | 100GD03 | 42 |
