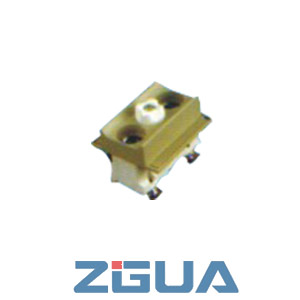

D0-Flush Screw Type Fuse bases D01/D02. triple-pole
● According to DIN VDE 0636,IEC 269
● D01，D02: device mounting depth 70mm; D03: device mounting depth app. 75mm
● Ceramic bases
● 1 and 3 pole models for snap-on and screw fixing
● Universal applications
● Two cable connecton outgoing terminal for D01 flush mounting fuse bases for conductor 2 leads up to 4mm2
● Terminal screw Pozidriv(D01:M4. D02:M5)
| size | In A |
Conductor sizes up to mm2 |
Terminal design | Order NO. | Fig. | Weight (g) |
| D0-Flush mounting fuse bases D01/D02. triple-pole | ||||||
| with protective cover. with snap-on fitting | ||||||

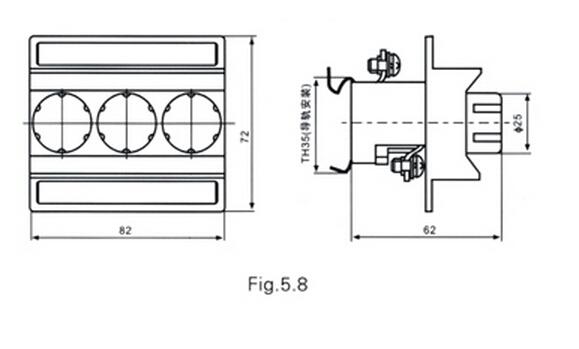

| D01 | 16 | 4 | B | FB3D01 | Fig.5.8 | 263 |
| D02 | 63 | 25 | S | FB3D02S | 293 | |
| D02 | 63 | 25 | KS | FB3D02K | 290 | |
Tyep of termination for the D0 flush mounting fuse bases.
B=Clamp-type terminal S=Saddle-terminal.
KS=Jnc.screw head-contact Out.saddle-terminnl.
