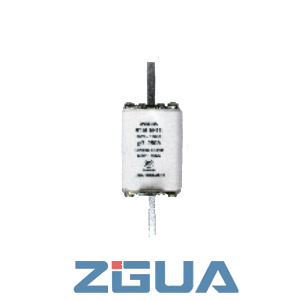

NT-Fuse link NT(NH) RT16 Fuses
- NT-Fuse link
- According to IEC60269,DIN 43620,GB13539 and CE Safety, ROHS certificate.
- Rated voltage:AC500V/690V or DC 440V
- Rated current:2A~1250A.
- Exception: Size 00 with DC 250V
- Operating class:
- ①gL/gG for cable and conductor protection
- ②aM for motor protection
- ③aR for semiconductor protection
- Finely graduated selectivity
- Rated breaking capacity:AC120kA(Size 00:AC 50kA)
- Technology Parameter
