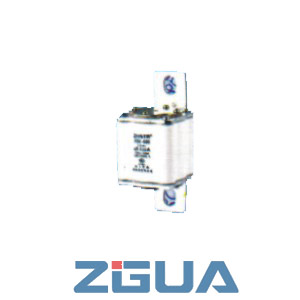

RS0-480 NGT/RSO/FS3 Fuse Links
NGT,RSO&FS3 Series Fuse Links
According to GB13539 and IEC 269
Dimensions according to DIN 43620,DIN 43653
Rated voltage:AC 500V,AC 690V,AC 1000V
Ope rating class gR(aR)
For semiconductor protection
| size | In | Order NO. | Fig. | Weight |
| A | (g) | |||
| With bolt-on lugs | ||||
| Rated voltage:AC 690V | ||||
| RS0-480 (RS3-300) |
250 | 250RS0480 | Fig.6.3 | 1080 |
| 300 | 300RS0480 | |||
| 320 | 320RS0480 | |||
| 350 | 350RS0480 | |||
| 400 | 400RS0480 | |||
| 480 | 480RS0480 | |||

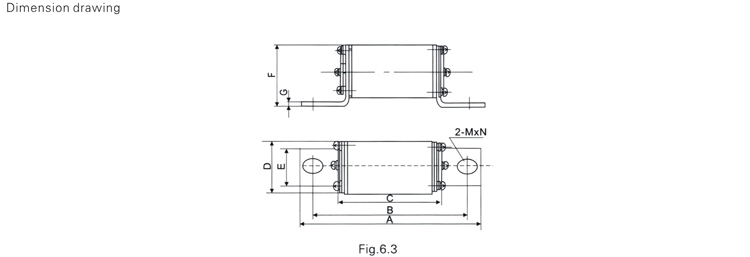

| For dimension drawings, see pages 37 | ||||
|
No.
|
Size
|
Fig.
|
Class rating(A)
|
Dmensions(mm)
|
|||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Φ
|
||||
|
047
|
RS0-50(RS350)
|
Fig.6.3
|
50
|
135
|
120
|
25
|
25
|
15
|
45
|
2
|
7
|
|
048
|
RS0-100(RS3100)
|
Fig.6.3
|
100
|
140
|
120
|
70
|
40
|
20
|
43
|
2
|
7×10.5
|
|
049
|
RS0-200(RS3200)
|
Fig.6.3
|
200
|
145
|
120
|
72
|
46
|
25
|
50
|
3
|
9×13.5
|
|
050
|
RS0-350(RS3350)
|
Fig.6.3
|
400
|
150
|
120
|
76
|
55
|
30
|
61
|
4.5
|
9×13.5
|
|
051
|
RS0-480(RS3480)
|
Fig.6.3
|
600
|
155
|
120
|
76
|
66
|
40
|
72
|
5
|
13×19
|
