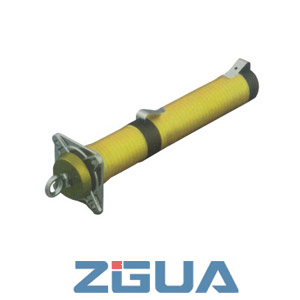

high voltage fuse XRNT4
H.V. current-limiting fuse for protection of transformer
General
Type ZGR2(XRNT4)-15.5 H.V.Current-limiting fuse for protection of transformer(here-under fuse)is a full range fuse,it is available for H.V. indoor electric system,with rated voltage 15.5KV, rated current up to 63A, 50Hz a. c.. It is used for protecting from overload and short-circuit for power transformer.
Standard
Accord with GB 15166.2 Alternating-current high-voltage fuses Current-limiting fuse
Construction
The fuse consists of a fuse-link, a fuse carrier and a fuse-mount. Each side of the fuse-link should be inserted into the connecting-cartridge and fixed by a bolt tightly then put it into the fuse-mount.

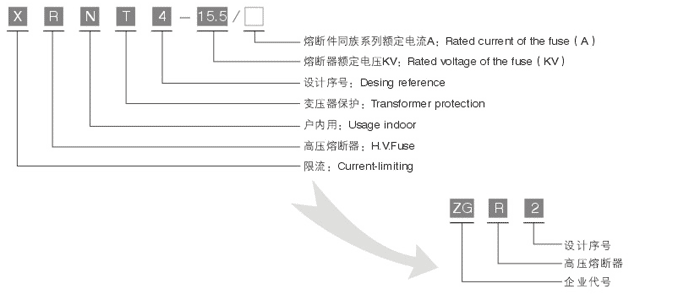

Type instruction

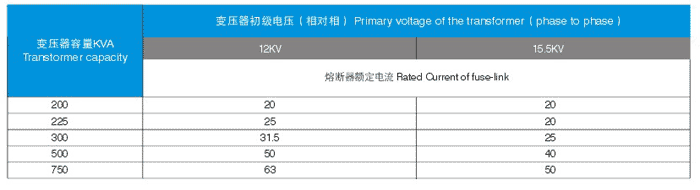

Applying For appropriate
FusesOrder number

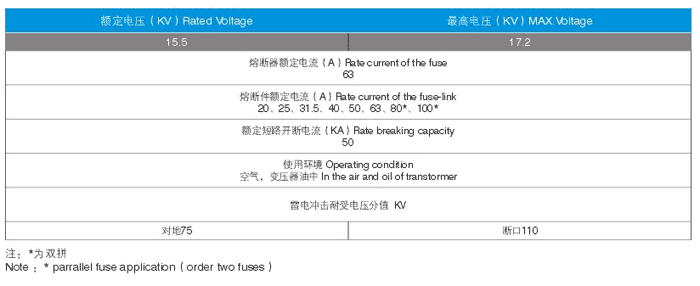

Basic parameters

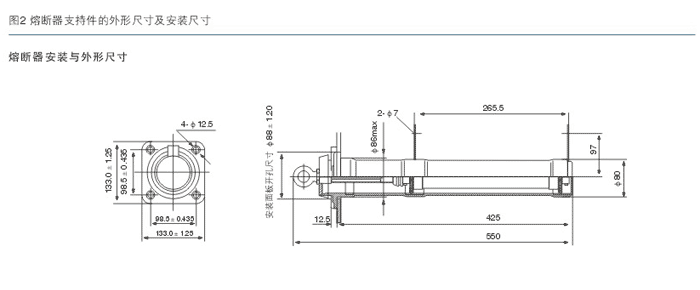

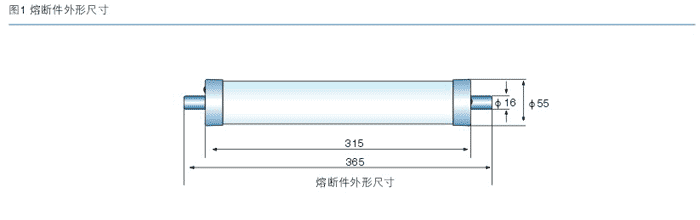

Installation Dimensios
