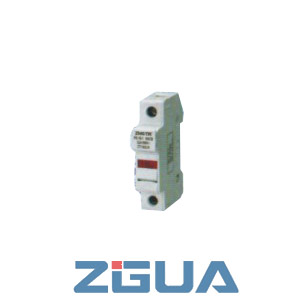

ZT18-32X with LED Mounting fuse bases for Cylindrical Contact Cap Fuses
Mounting fuse bases for cylindrical fuse links
According to IEC 269-2，NF C 63 210-63 211-60 200，NBN C
63269-2 en-2-1
Rated currents:32A、63A、125A
Rated voltage:AC 500V
Utilization category AC-20B，DC-20B
| Size | Fuse Link Size | No.of poles | Order No. | Fig. | Weight(g) |
| Rated current 32A | |||||
| ZT18-32X with LED |
10×38 | 1 1+N 2 3 3+N |
1PZT1832X 1PZT1832X 2PZT1832X 3PZT1832X 3PZT1832X |
Fig.4.7 | 59 118 118 177 236 |
