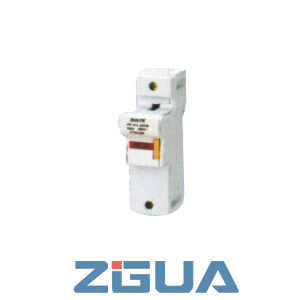

ZT18-125 Mounting fuse bases for Cylindrical Contact Cap Fuses
Mounting fuse bases for cylindrical fuse links
According to IEC 269-2，NF C 63 210-63 211-60 200，NBN C
63269-2 en-2-1
Rated currents:32A、63A、125A
Rated voltage:AC 500V
Utilization category AC-20B，DC-20B
| Size | Fuse Link Size | No.of poles | Order No. | Fig. | Weight(g) |
| Rated current 125A | |||||
| ZT18-125 | 22×58 | 1 1+N 2 3 3+N |
1PZT18125 1PZT18125 2PZT18125 3PZT18125 3PZT18125 |
Fig.4.8 | 280 560 560 840 1120 |
