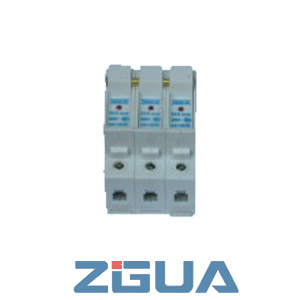

RT18-125X with LED Cylindrical Contact Cap Fuses
Mounting fuse bases for cylindrical fuse links
According to IEC 269-2，NF C 63 210-63 211-60200，NBN C
63 269-2 en-2-1
Rated currents:32A、63A、125A
Rated coltage:AC 500V
Utilization category AC-20B，DC-20BV
| Size | Fuse Link Size | No.of poles | Order No. | Fig. | Weight(g) |
| Rated current 125A | |||||
| 22×58 | 1 1+N 2 3 3+N |
1PRT18125X 1PRT18125X 2PRT18125X 3PRT18125X 3PRT18125X |
Fig.4.6 | 280 560 560 840 1120 |
|
