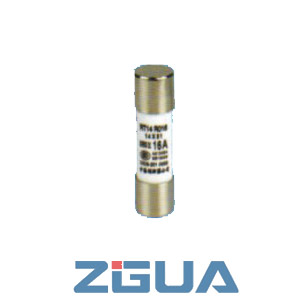

fuse cap Cylindrical Contact Cap Fuses
●According to IEC 269-2,NF C63210-63211-60200，NBN C 63269-2 en-2-1和CEI 32-4
●Rated voltage: AC 400V，AC 500V
●Operating class:
①gL/gG for conductor protection
②aM for motor protection
③aR for semiconductor protection
●Rated breaking capacity：AC 100kA
| Operating class | In A |
Order No. | Fig | Weight (g) |
||
| Operating | Operating | Operating | ||||
| class(gL/gG) | calss(aM) | class(aR) | ||||

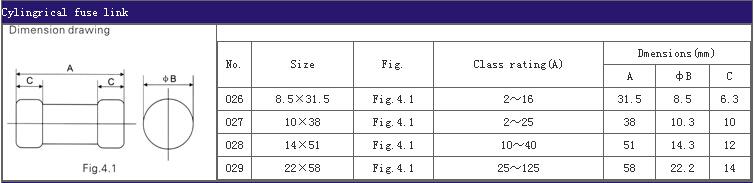

| 14×51 | 4 | 04G1451 | 04M1451 | 04R1451 | Fig.4.1 | 21 |
| 6 | 06G1451 | 06M1451 | 06R1451 | |||
| 8 | 08G1451 | 08M1451 | 08R1451 | |||
| 10 | 10G1451 | 10M1451 | 10R1451 | |||
| 12 | 12G1451 | 12M1451 | 12R1451 | |||
| 16 | 16G1451 | 16M1451 | 16R1451 | |||
| 20 | 20G1451 | 20M1451 | 20R1451 | |||
| 25 | 25G1451 | 25M1451 | 25R1451 | |||
| 32 | 32G1451 | 32M1451 | 32R1451 | |||
| 40 | 40G1451 | 40M1451 | 40R1451 | |||
| 50 | 50G1451 | 50M1451 | 50R1451 | |||
| 63 | 63G1451 | 63M1451 | 63R1451 | |||
