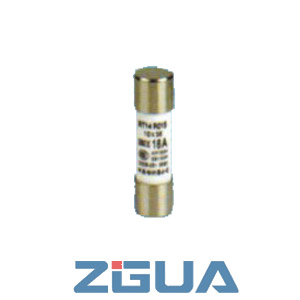

Cylindrical fuse links Cylindrical Contact Cap Fuses
●According to IEC 269-2,NF C63210-63211-60200，NBN C 63269-2 en-2-1和CEI 32-4
●Rated voltage: AC 400V，AC 500V
●Operating class:
①gL/gG for conductor protection
②aM for motor protection
③aR for semiconductor protection
●Rated breaking capacity：AC 100kA
| Operating class | In A |
Order No. | Fig | Weight (g) |
||
| Operating | Operating | Operating | ||||
| class(gL/gG) | calss(aM) | class(aR) | ||||
| 10×38 | 0.5 | 00G1038 | 00M1038 | 00R1038 | Fig.4.1 | 8 |
| 1 | 01G1038 | 01M1038 | 01R1038 | |||
| 2 | 02G1038 | 02M1038 | 02R1038 | |||
| 4 | 04G1038 | 04M1038 | 04R1038 | |||
| 6 | 06G1038 | 06M1038 | 06R1038 | |||
| 8 | 08G1038 | 08M1038 | 08R1038 | |||
| 10 | 10G1038 | 10M1038 | 10R1038 | |||
| 12 | 12G1038 | 12M1038 | 12R1038 | |||
| 16 | 16G1038 | 16M1038 | 16R1038 | |||
| 20 | 20G1038 | 20M1038 | 20R1038 | |||
| 25 | 25G1038 | 25M1038 | 25R1038 | |||
| 32 | 32G1038 | 32M1038 | 32R1038 | |||
